- 【Vixen-style Dovetail Plate】 Designed to accept the Vixen-style dovetail saddles.
- 【Long Slots with Diverse Mounting Holes】 With two long 52.6mm (2.07″) slots that is ideal for mounting and properly balancing devices. The slots are 6.4mm in width which accept M6 and 1/4″ screws. In addition, there are two 3/8″ threaded holes (M8 countersunk holes) with a spacing of 35mm (1.38″) in each slot.
- 【M6 & 1/4″ Countersunk Bores】 There are 6 pairs of 6.4mm countersunk holes with a spacing of 20mm (0.79″). The 6.4mm countersunk holes matching M6 and 1/4″ screws. Ideal for accessories that with M6 or 1/4″ threaded holes with a spacing of 20mm (0.79″).
- 【1/4″ Threaded Holes】 It reserved 1/4″ threaded hole in the center for mounting on a variety of brackets that with 1/4″ screw.
- 【Anti-slip Secure Connection】 Ten anti-slip rubber pads enhance the grip between mounting plate and devices, and protect devices from any damage due to mounting. Four safety stop screw in bottom is to prevent drop by accident. (Note: It need to remove two safety stop screws for the saddle that does not support drop-in loading)
Uncategorized

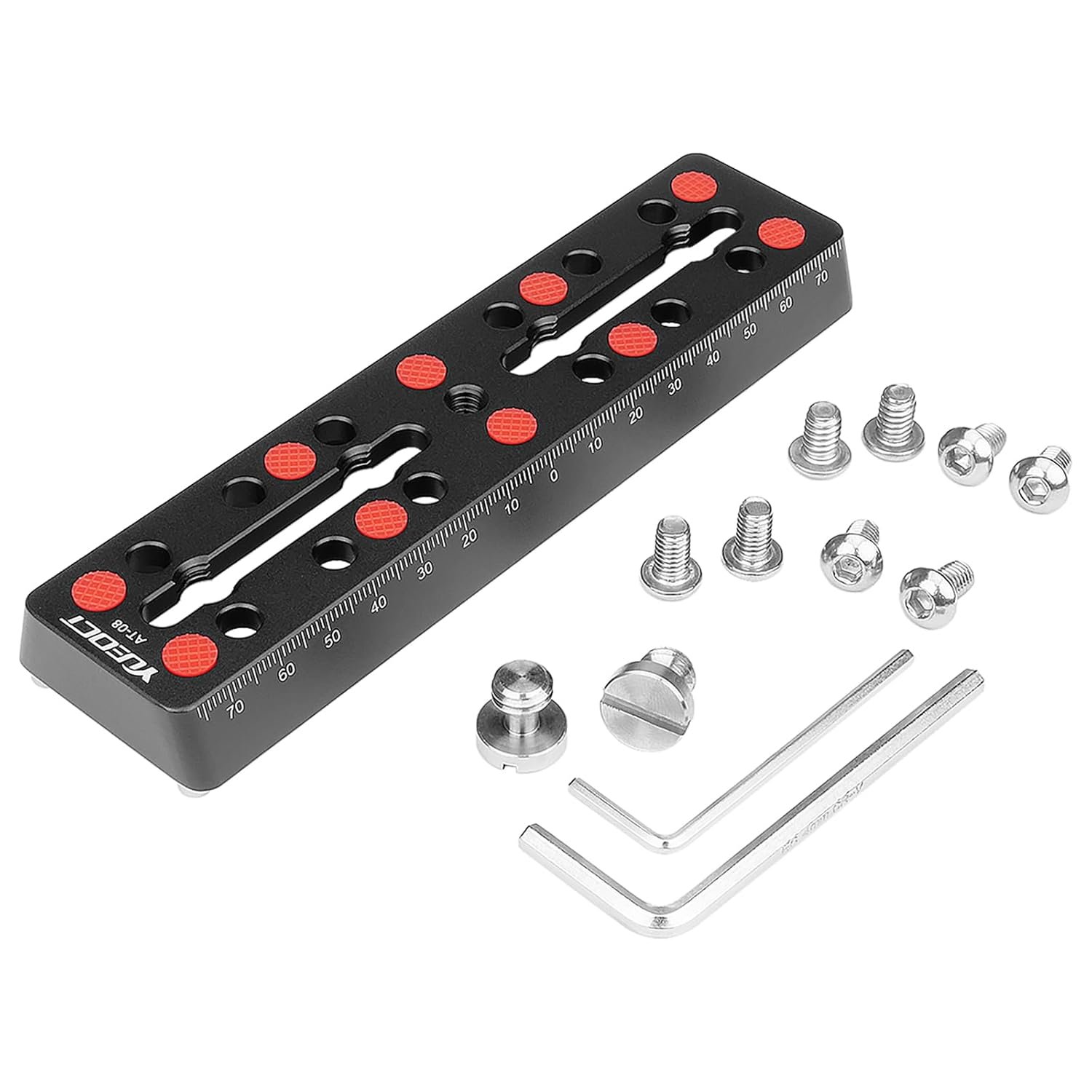

160mm/6.3″ Telescope Rail Bar Vixen Style Dovetail Mounting Plate, with M6 1/4″ 3/8″ Camera Screw for Telescope Saddle Mount Base OTA Equatorial Head Tripod Adapter Sky…
£32.71
| Item depth | 6.3×1.71×0.59in |
|---|---|
| Mounting type | Tripod Mount |
| Manufacturer | Yueoct |
| Part Number | AT-08 |
| Package Dimensions | 18.49 x 5.31 x 3.2 cm, 177.46 g |
| Item model number | Yueoct-? |
| Finish | Black |
| Item Package Quantity | 1 |
| Included Components | 1 x 160mm, 6.3" Vixen-style Mounting Plate, 1 x 4mm Allen Wrench, 1 x 2.5mm Allen Wrench, 2 x 3/8"-16 Slotted Screws, 4 x 1/4"-20*3/8 Hex Socket Screws, 4 x M6*10 Hex Socket Screws |
| Batteries included | No |
| Batteries Required | No |
| Item Weight | 177 g |
| Date First Available | 30 Aug. 2022 |
